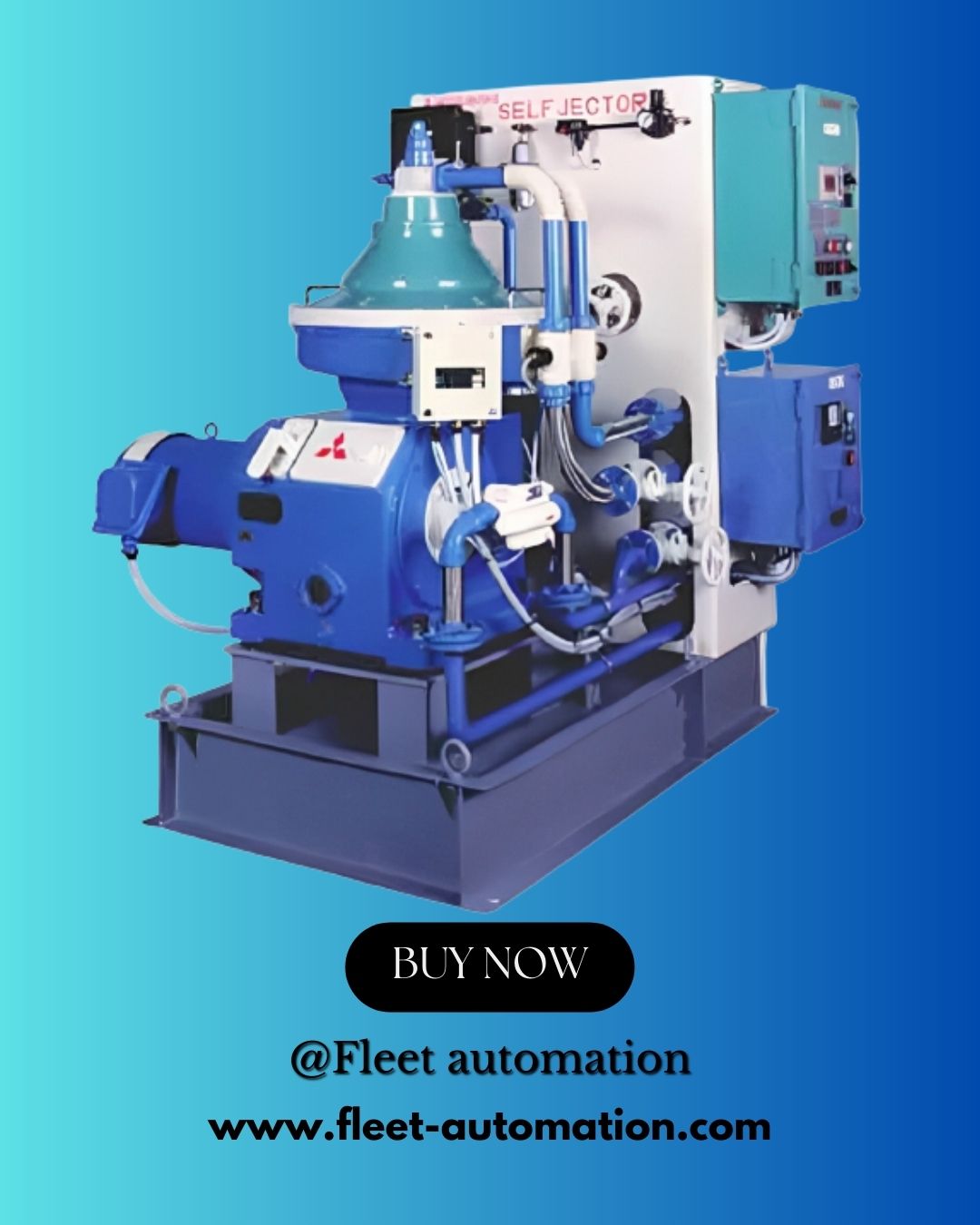

Mitsubishi SJ50G Separator is a highly efficient centrifugal separator that is specifically design in a way to use in marine services. It effectively separates different types of liquids and solids from various marine fluids, such as fuel and lubricating oils.

Additionally, the Separator Comprises of several key parts, including the bowl assembly, disk stack, drive assembly, control panel, inlet and outlet piping, solids discharge mechanism, and liquid discharge mechanism, these parts work together to achieve efficient separation of fluids.

The SJ50G Separator has a maximum throughput capacity of 3.5 m3/hour and can operate at a maximum speed of 8800 rpm. Moreover, it is design to handle fluids with a maximum density of 1200 kg/m3 and can operate at a maximum pressure of 0.4 MPa and a maximum temperature of 60°C. Also, the separator features an automatic self-cleaning solids discharge method and is powered by a 1.1 kW motor with a 3-phase, 50/60 Hz, 380/415 V power supply. It weighs 175 kg and measures 550 x 550 x 950 mm (L x W x H).

Furthermore, the SJ50G Separator features a user-friendly interface that allows operators to easily monitor and control the equipment. it has the ability to adjust to specific requirements, allowing for modifications in flow rate and operating pressure. This feature makes it a highly adaptable solution for numerous marine applications.

Overall, the Mitsubishi SJ50G Separator is a reliable and efficient solution for marine services that require effective separation of liquids and solids from various fluids.

We are not an official distributer of Mitsubishi Spares.
